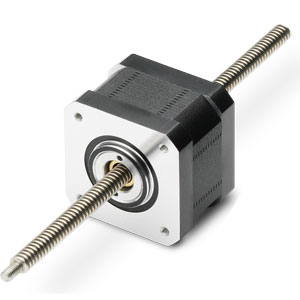

MLN11A05-180100P04000N-C1A0-XXX
Can't find what you're looking for? Go to the Product Selector
Motorized, NEMA 11, 0.0005 英寸 Travel/Step, Single Stack, 0.51 A, Rotating Nut, Nut integral to motor, 0.18 X 0.1 英寸 梯形絲杠
- 混合式步進電機和精密梯形絲杠共同集成在緊湊封裝中。
- 比競爭對手更高的力矩密度
- 更高的效率。
- 噪音更低。

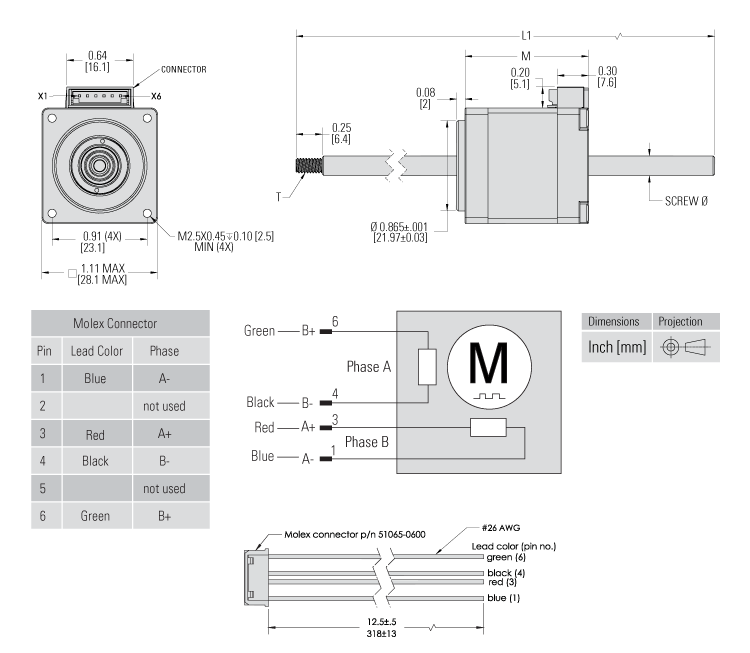

| 尺寸 | 價值 |
|---|---|
| [L1] Screw Length | 4 英寸 |
| [M] | 1.26 英寸 |
| End Machining, Front, [T] | #4-40 Thread X 0.250 in |
| End Machining, Rear | No-Machining |
| Screw, Lead | 0.1 英寸 |
| Screw, Nomial Diameter | 0.18 英寸 |
| Travel/Step | 0.0005 英寸 |
| 絲杠跳動 | 0.007 in/ft |
| 絲杠直線度 | 0.005 in/ft |
| Performance | 價值 |
|---|---|
| Load, Max @ Max Speed | 0.83 磅力 |
| Load, Max @ Min Speed | 10.4 磅力 |
| Max Speed (Recommended) | 9.3 英寸每秒 |
| Motor, Step Angle | 1.8 ° |
| Screw, Lead Accuracy | 0.003 in/ft |
| Travel/Step | 0.0005 英寸 |
